Variant La Massana tram 1

DATA
Wrtiting of the project of the 1st section of the diversion of La Massana
Address: Anyós (See on map)
Location : La Massana

TEAM
Client: Govern d'Andorra
Architecture:
Structure: AMATRIA (J.M. VELASCO) + GRUP SIGMA (Guillem VALDÉS+Jordi RAMÉNTOL+GET BEAL)

DESCRIPTION
Category: Civil engineering works
Start Year: 2006
End year: 2011
Uses: Road bridge

STRUCTURE
Surface of built structure: 3.290m2 of deck

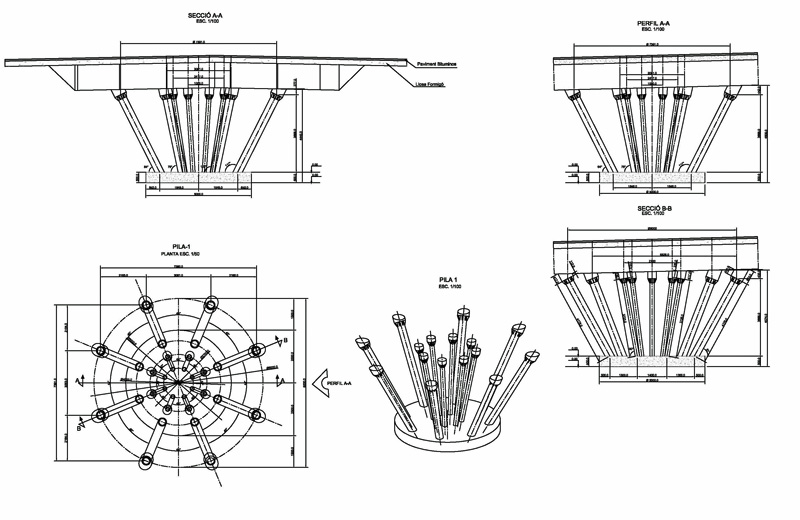

Foundations: jet grouting piles

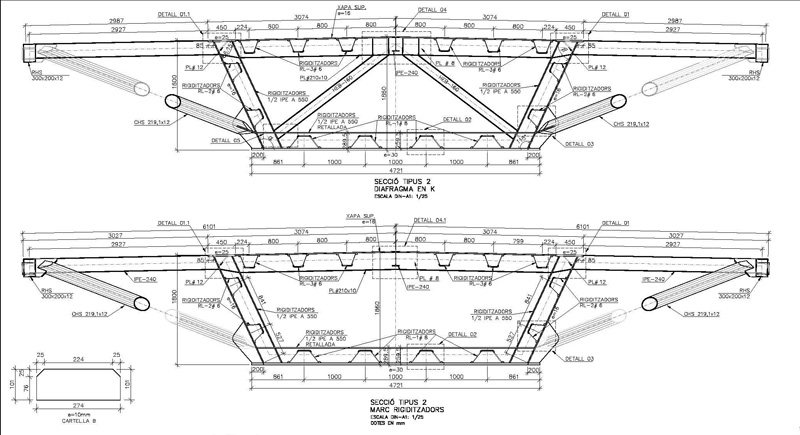

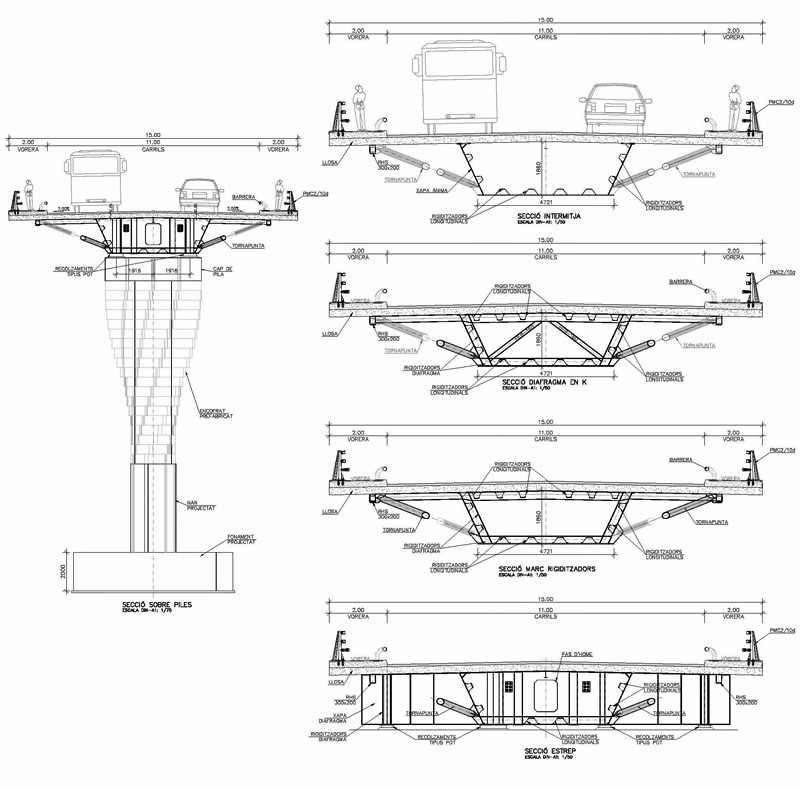

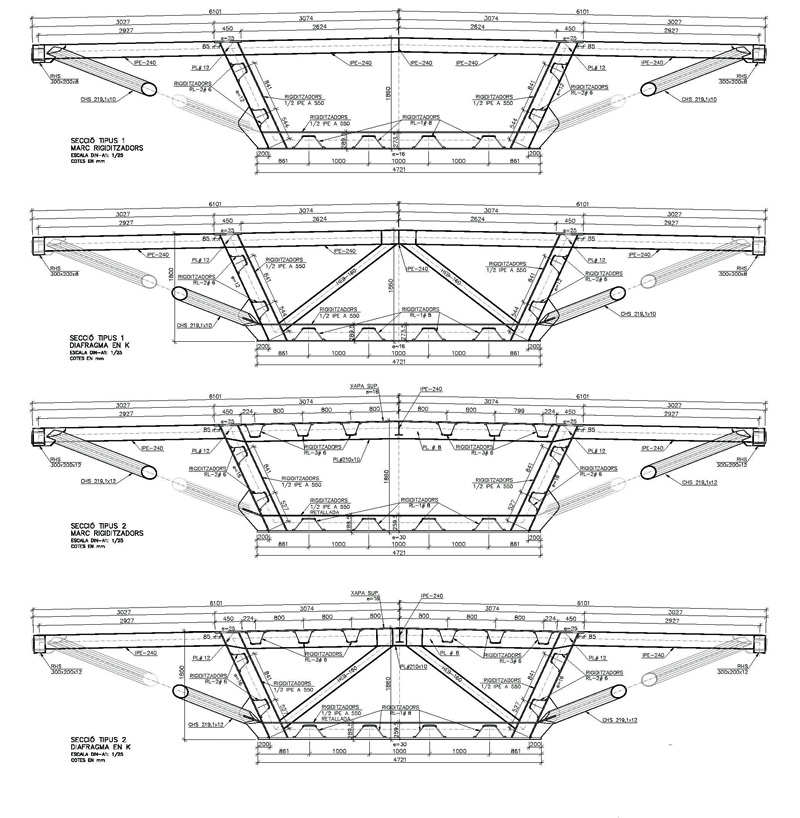

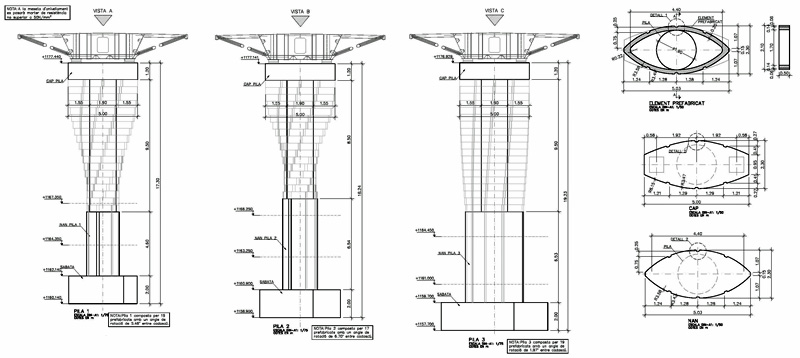

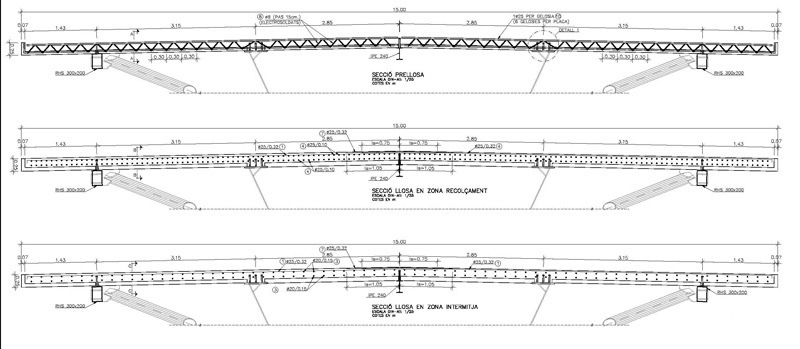

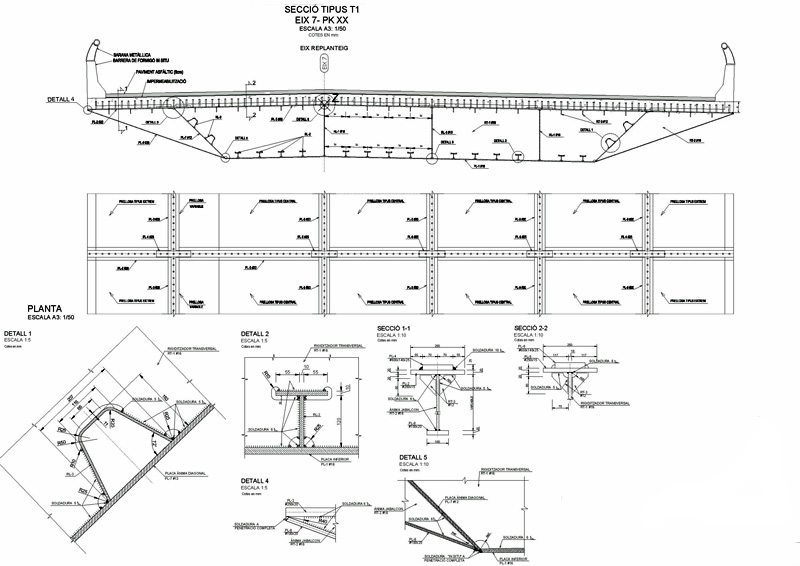

Structure: concrete columns, composite deck with steel box and reinforced concrete slab
/
